144C Modular ODF 19" Rack Mount Fiber Distribution Frame

Ask Lasest Price
Brand Name :	Dawnergy
Model Number :	144C Modular ODF
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

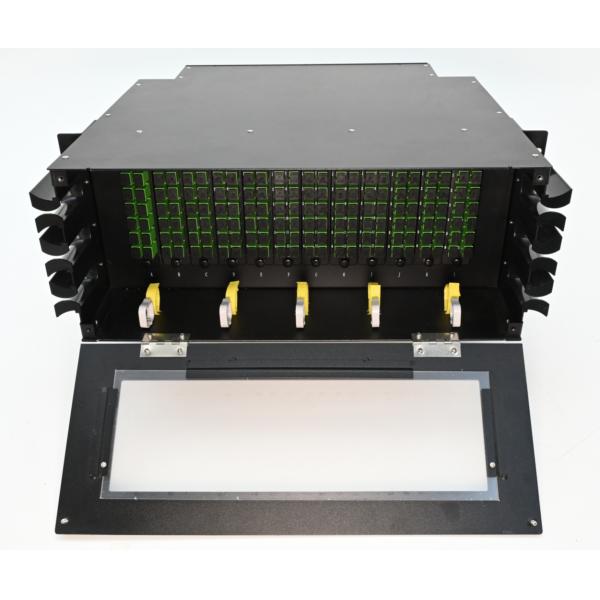

144C Modular ODF 19" Rack Mount Fiber Distribution Frame

Product Attributes

Attribute	Value
Max. No. of Cores	FC/SC/ST/duplex LC
Module Slots Number	12
Material	Cold-rolled steel, 1.2mm thickness
Installation Method	19" rack mount
Splicing Tray	12 cores tray

Product Description

Overview

144Core modular optical fiber distribution frame is used where termination and connectivity of 144 fibers (high density) is required. The frame design is based on a 4U rack unit height. This 144C modular ODF is composed of 12pcs pre-loaded 12C splicing and patching unit that includes FC/SC/ST/duplex LC compatible adaptors, pigtails and 12 core splice trays.

Features

Modular design, sliding out type 12C fiber splicing and patching unit with rails for easy operation
Integrated design provides OSP cable fibers and pigtail splicing, patch-cord termination and storage
Provides maximum protection of optical components
Excellent mechanical performance
Reliable fiber routing and fixing design
Minimum fiber bending radius guaranteed
Good dust proof performance

Applications

Telecommunication Closets

Data Centers

Customer Premise

Central Offices

Hubs

Cabinets

Remote Terminals

Specifications

Parameters	Specification
Max. No. of Cores	144
Adapter Type	FC/SC/ST/duplex LC
Module Slots Number	12
Material	Cold-rolled steel, 1.2mm thickness
Color	Black or grey powder coating
Installation Method	19" rack mount
Splicing Tray	12 cores tray
Dimensions	482420175mm
Operating Temperature	-20~+55℃
Relative humidity	≤85% (30℃)
Atmosphere pressure	70~106KPa
Insulation Resistance	≥2x10⁴MΩ/500V(DC)

Components

Cable and Strength Member Clamp

Side Organizer

Splice and Adapters Module

Accessory

No.	Item	Unit	Qty
1	Modular Optical Fiber Distribution Frame (ODF)	Set	1
2	Rack mounting M6 clamp screws and nuts	Set	4
3	Hose Clamp	Piece	8
4	Splicing Protection Sleeve	Piece	144
5	Cable Tie	Piece	20
6	Protection Tube	Piece	1
7	Velcro	Piece	5

Ordering Information

Name	Description
Modular Optical Fiber Distribution Frame (ODF)	Black; Cold-rolled steel; 19-inch rack, 4U, sliding type; Max. 144 cores, 12pcs splice and SC type adapters module can be installed; SC type adapters and pigtails included
